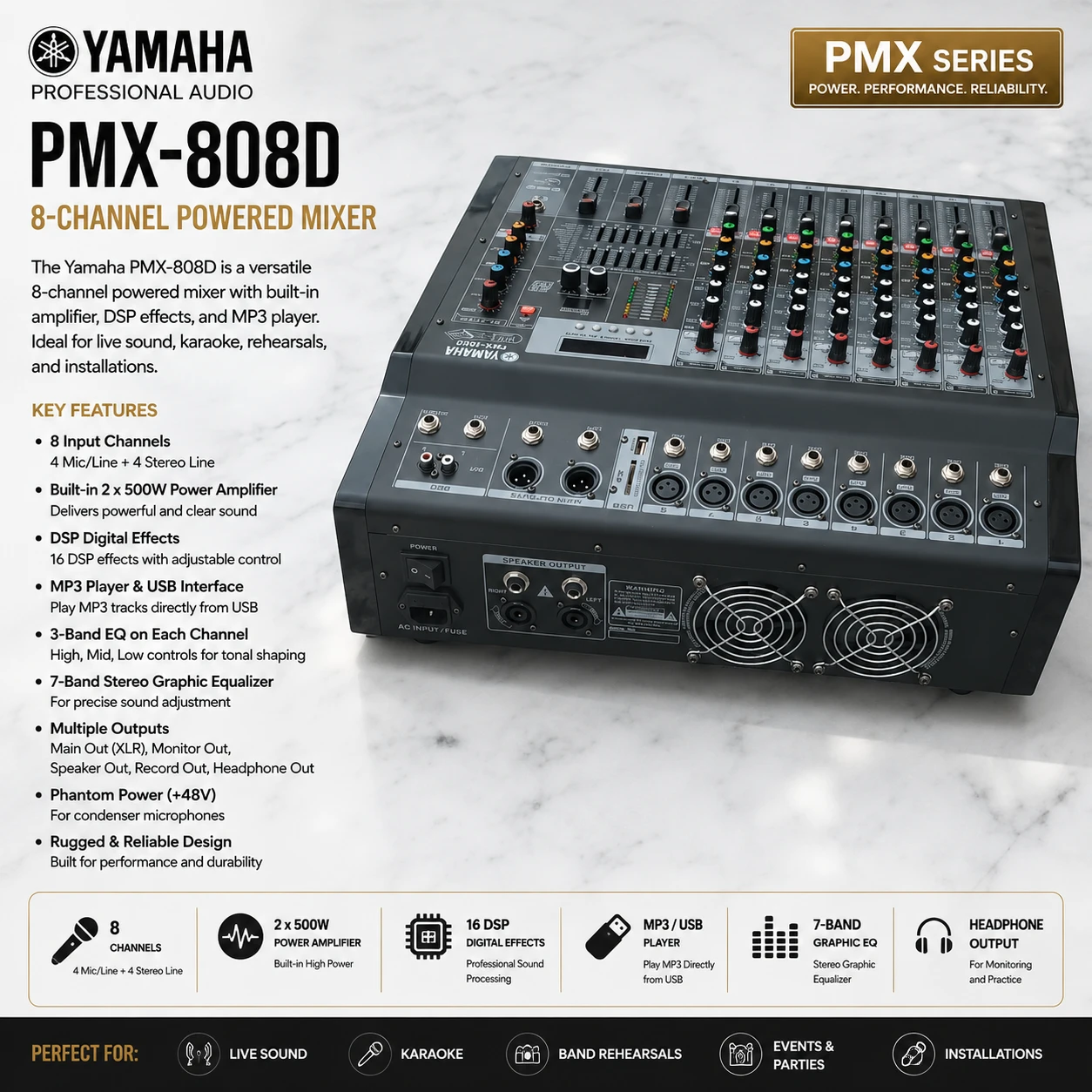

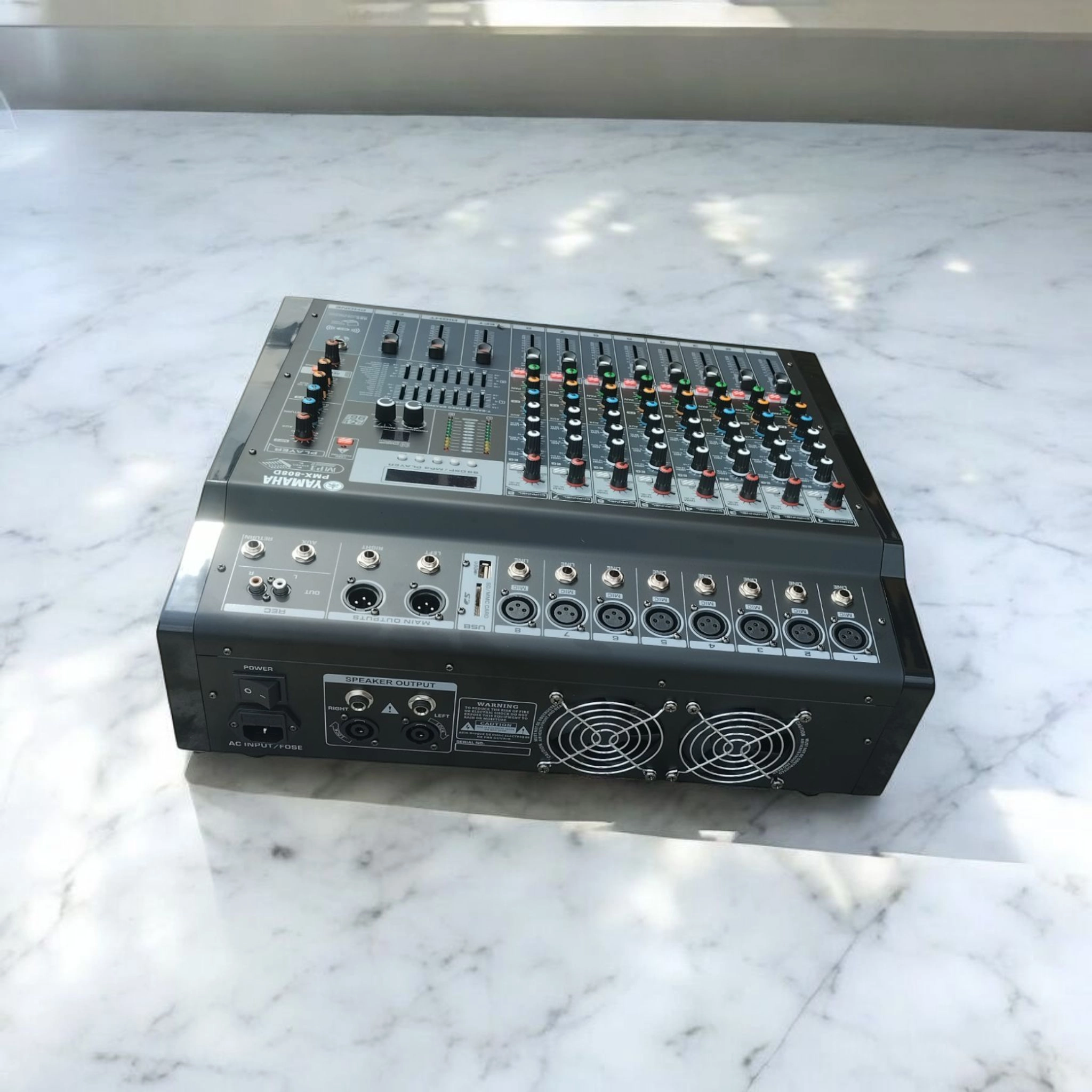

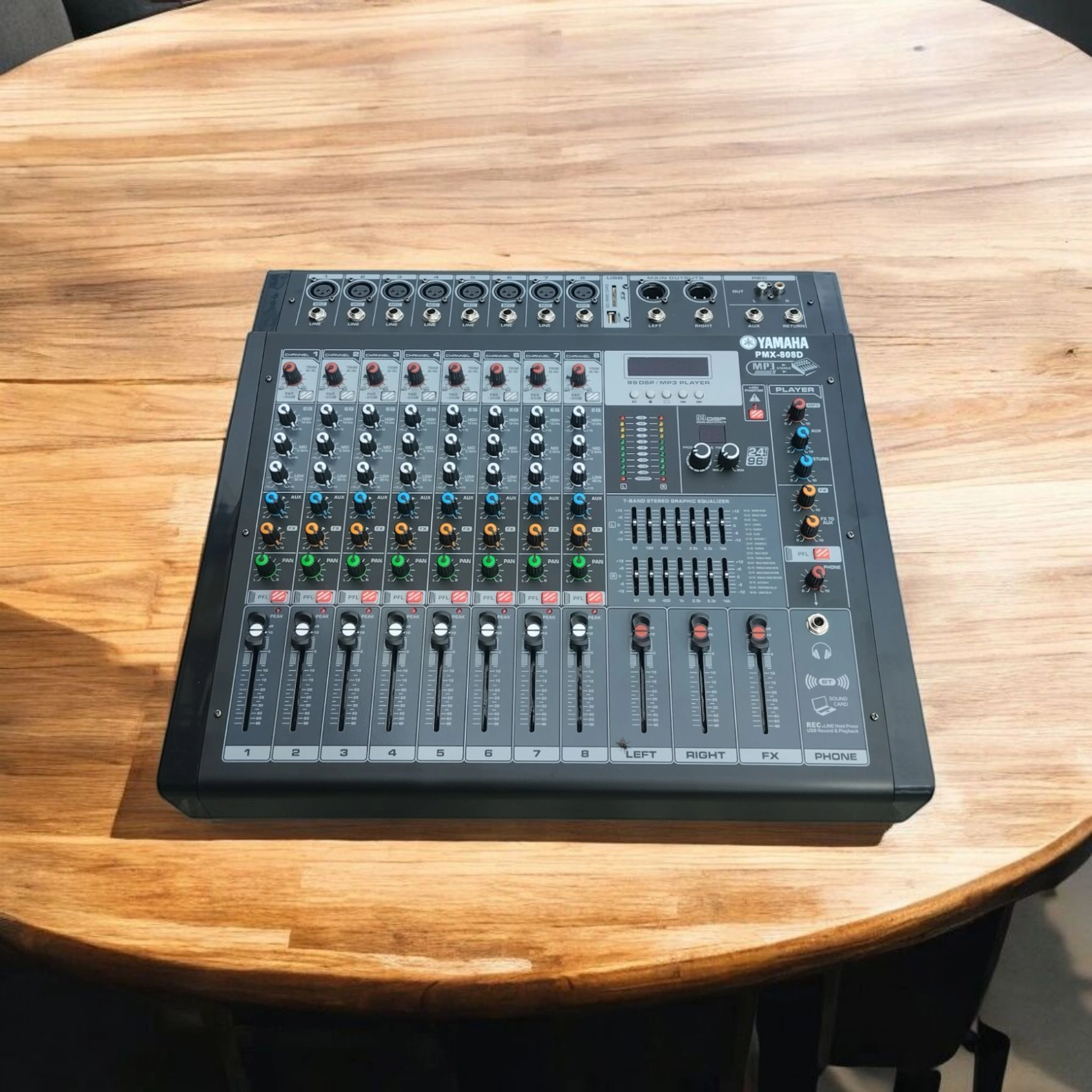

The Yamaha PMX-808D is a versatile and powerful all-in-one mixing solution designed for live sound reinforcement, churches, and professional DJ setups. Combining a high-output power amplifier with a feature-rich 8-channel mixer, this console eliminates the need for external amps, making it an ideal choice for mobile rigs and permanent installations alike.

​Equipped with modern digital conveniences, the PMX-808D features built-in Bluetooth for wireless streaming and a USB interface for both MP3 playback and direct recording to a computer. Its rugged build and intuitive layout ensure reliable performance in high-pressure environments, delivering clean, impactful audio with minimal setup time.

​Key Features:

​Powerful Integrated Amplifier: Delivers robust wattage (up to 1600W Peak) to easily drive multiple mid-range and full-range speakers.

​8 Mono Input Channels: Each channel features balanced XLR and 1/4" jack inputs for microphones and instruments.

​Digital DSP Effects: Includes 16 high-quality digital effect programs (Reverb, Echo, etc.) to enhance vocal and instrumental depth.

​Wireless & Digital Playback: Integrated Bluetooth connectivity and a USB/SD card slot with a dedicated LCD for easy media management.

​Tone Shaping: Features a 3-band EQ on each channel and a master 5-band graphic equalizer for precise control over the main mix.

​Phantom Power (+48V): Global phantom power support for professional condenser microphones.

​Recording Function: Easily connect to a laptop or PC via USB to record your live sets or services directly.

​Technical Specifications:

​System Type: 8-Channel Powered Mixing Console

​Output Power: 800W x 2 (4 Ohms)

​Frequency Response: 20 Hz – 20 kHz

​Equalization: 3-Band Channel EQ + 5-Band Master Graphic EQ

​Effects: 16-bit DSP Processor

​Connectivity: Bluetooth, USB (Playback & Recording), SD Card

​Inputs: 8 XLR Mic / Line Jack inputs

​Outputs: Dual Speakon and 1/4" Jack speaker outputs, REC Out, Headphone Out
