Sound standard CA30 Amplifier

-₦20,000.00

Sound standard CA30 Amplifier

(0)

0 Reviews

50 In Stock

~~₦400,000.00~~₦380,000.00

Qty

Total price: ₦400,000.00

Details description
The Sound Standard CA30 is a legendary heavyweight in the world of professional power amplification. Engineered with a sophisticated 3-step Class H architecture, this amplifier delivers massive output levels with exceptional efficiency, making it the go-to choice for driving high-power subwoofers and large-scale line arrays in churches, stadiums, and outdoor festivals. Built into a rugged 3U rack-mountable chassis, the CA30 is designed to maintain sonic stability even under low-voltage conditions. Its advanced thermal management system, featuring dual-speed progressive cooling fans, ensures that the internal components stay cool during hours of continuous peak performance. With a high damping factor and ultra-low distortion, the CA30 provides tight, punchy bass and crystal-clear high-frequency reproduction. Key Features: High-Efficiency Class H Circuit: Dynamically adjusts the power supply rails to match the signal demand, reducing heat and increasing reliability. Massive Power Output: Delivers up to 5000W in bridged mono mode, providing the raw energy needed for the most demanding bass bins. Comprehensive Protection: Features soft-start, overcurrent, short-circuit, DC offset, and thermal protection to safeguard your speakers and the amp itself. Superior Cooling: Dual high-speed fans with rear-to-front airflow and built-in thermostats keep the unit at optimal operating temperatures. Professional Connectivity: Equipped with balanced XLR inputs and heavy-duty Speakon and binding post outputs for secure, high-current transmission. Built for the Road: A reinforced steel chassis and high-strength front panel ensure long-term durability in touring environments. Technical Specifications: 8 \Omega Stereo Power: 2 x 1800W / 2000W (model dependent) 4 \Omega Stereo Power: 2 x 2700W / 3100W 8 \Omega Bridged Power: 6200W / 5700W Frequency Response: 20 Hz – 20 kHz (\pm0.3 dB) Damping Factor: >500 / >1200 Signal-to-Noise Ratio: >103 dB Input Sensitivity: 0.775V / 1.0V / 1.4V Dimensions: 132 mm x 482 mm x 400 mm (3U)

Details description

The Sound Standard CA30 is a legendary heavyweight in the world of professional power amplification. Engineered with a sophisticated 3-step Class H architecture, this amplifier delivers massive output levels with exceptional efficiency, making it the go-to choice for driving high-power subwoofers and large-scale line arrays in churches, stadiums, and outdoor festivals.

Built into a rugged 3U rack-mountable chassis, the CA30 is designed to maintain sonic stability even under low-voltage conditions. Its advanced thermal management system, featuring dual-speed progressive cooling fans, ensures that the internal components stay cool during hours of continuous peak performance. With a high damping factor and ultra-low distortion, the CA30 provides tight, punchy bass and crystal-clear high-frequency reproduction.

Key Features:

High-Efficiency Class H Circuit: Dynamically adjusts the power supply rails to match the signal demand, reducing heat and increasing reliability.

Massive Power Output: Delivers up to 5000W in bridged mono mode, providing the raw energy needed for the most demanding bass bins.

Comprehensive Protection: Features soft-start, overcurrent, short-circuit, DC offset, and thermal protection to safeguard your speakers and the amp itself.

Superior Cooling: Dual high-speed fans with rear-to-front airflow and built-in thermostats keep the unit at optimal operating temperatures.

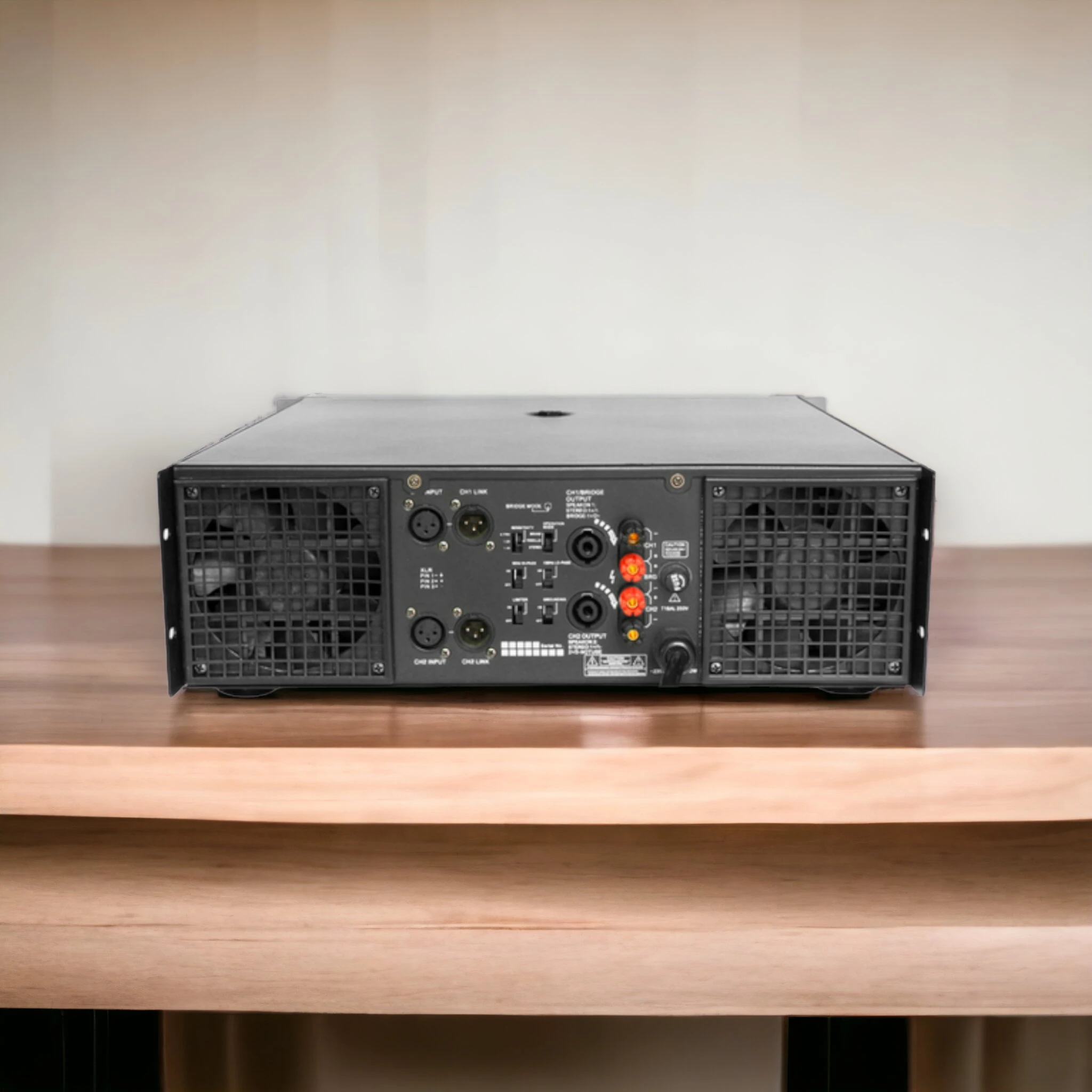

Professional Connectivity: Equipped with balanced XLR inputs and heavy-duty Speakon and binding post outputs for secure, high-current transmission.

Built for the Road: A reinforced steel chassis and high-strength front panel ensure long-term durability in touring environments.

Technical Specifications:

8 \Omega Stereo Power: 2 x 1800W / 2000W (model dependent)

4 \Omega Stereo Power: 2 x 2700W / 3100W

8 \Omega Bridged Power: 6200W / 5700W

Frequency Response: 20 Hz – 20 kHz (\pm0.3 dB)

Damping Factor: >500 / >1200

Signal-to-Noise Ratio: >103 dB

Input Sensitivity: 0.775V / 1.0V / 1.4V

Dimensions: 132 mm x 482 mm x 400 mm (3U)
