Details description |
|---|
|

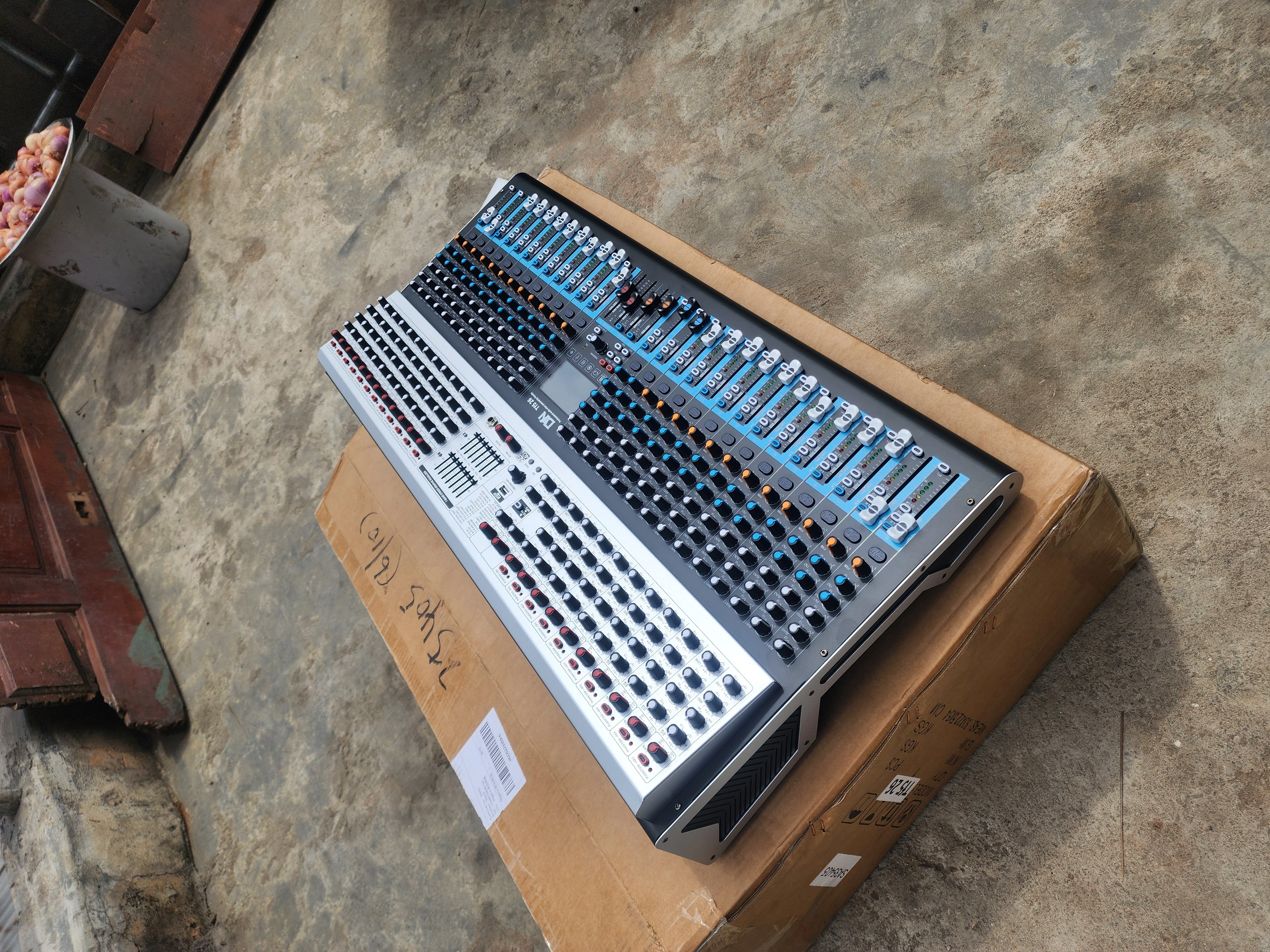

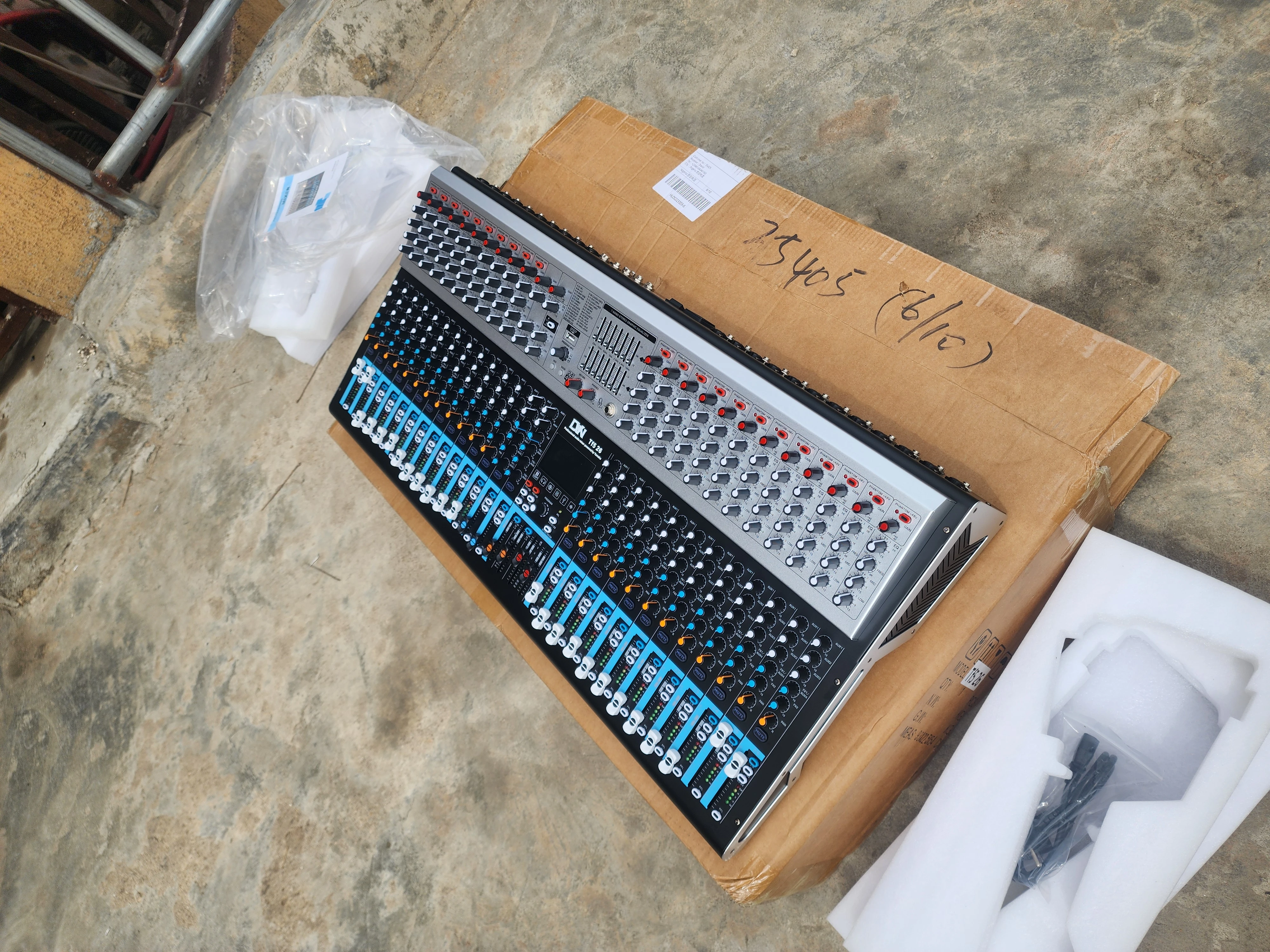

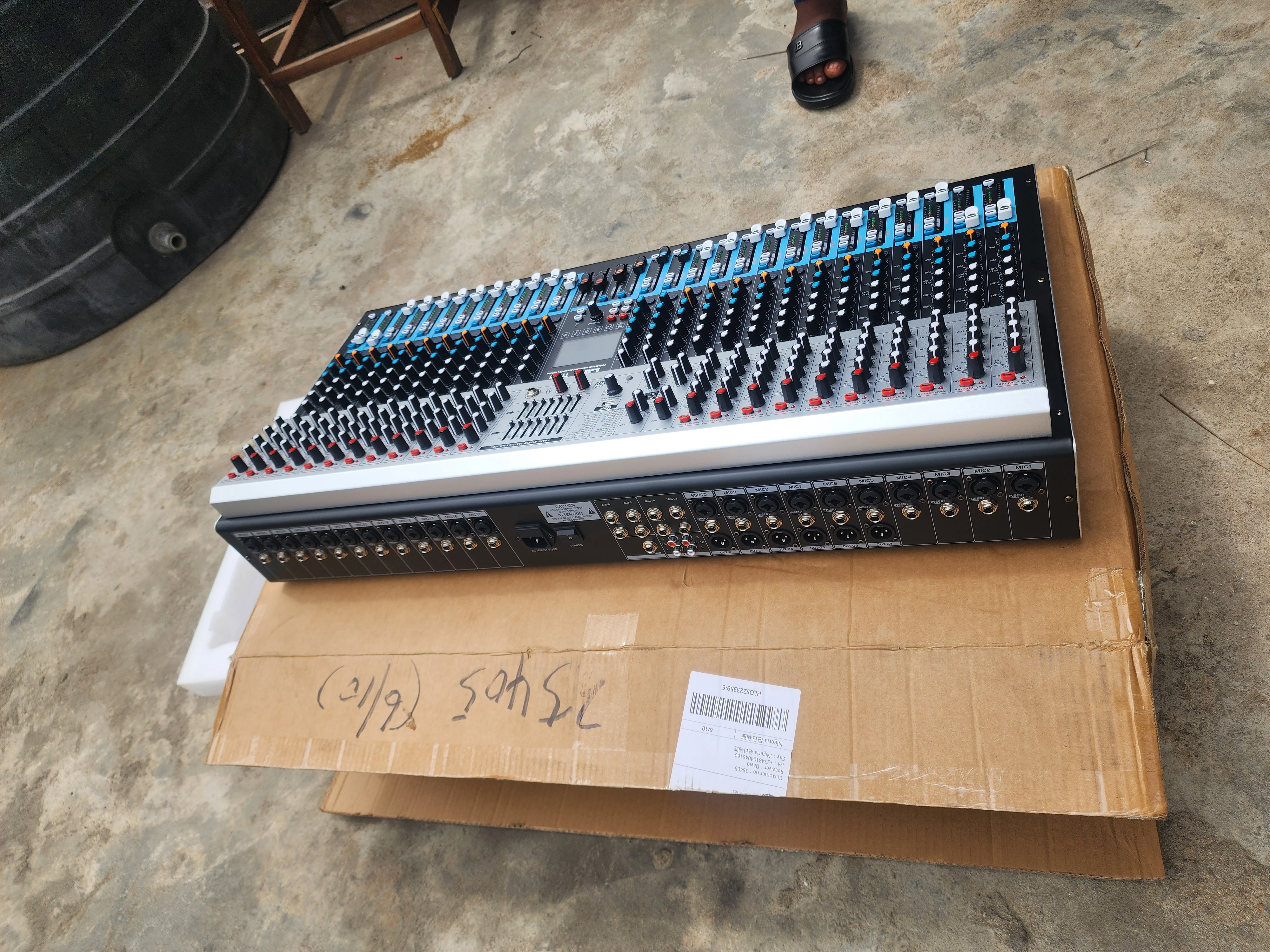

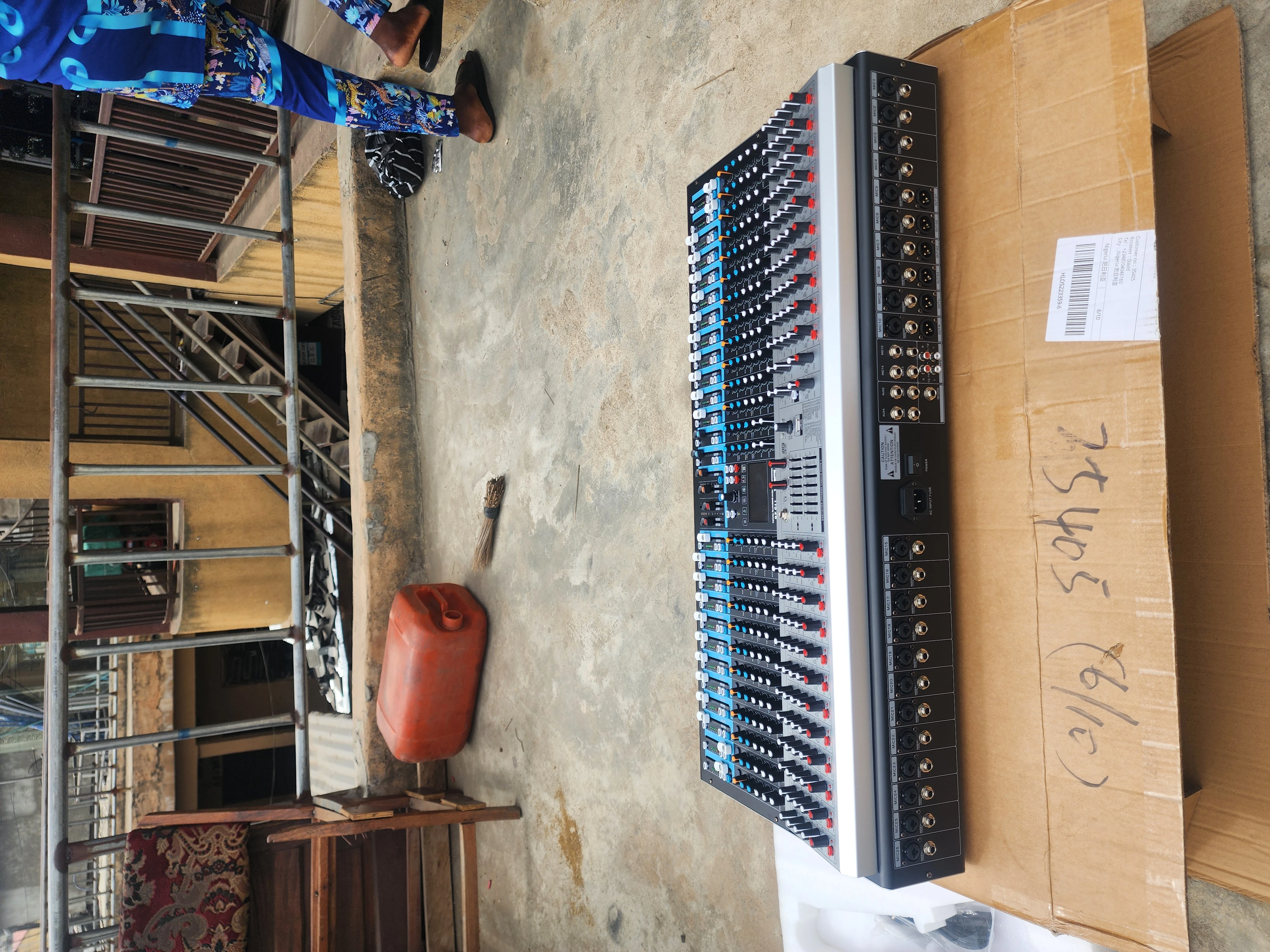

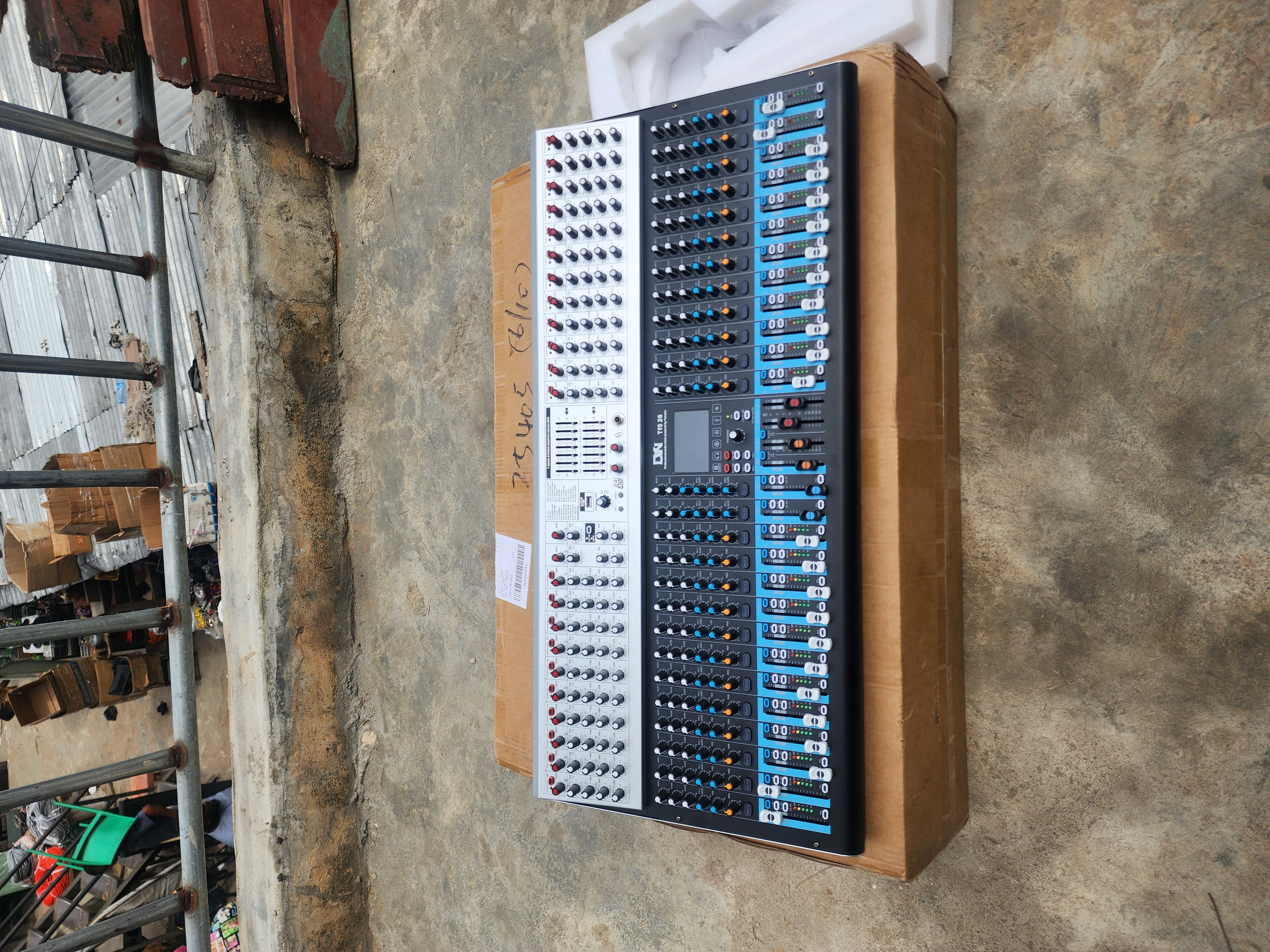

The DVN TF5 is a groundbreaking 26-channel semi-digital mixing console engineered for large-scale sound reinforcement, live band performances, major house of worship installations, and studio recording setups. By seamlessly blending the tactile familiarity of premium analog faders with high-velocity digital signal processing, the TF5 delivers an uncompromising audio engineering experience with an ultra-low noise architecture and massive dynamic range. At its core, the TF5 features studio-grade 192kHz digital-to-analog and analog-to-digital conversion alongside a powerful 40-bit floating-point DSP core. This allows the mixer to handle complex routing and signal processing effortlessly, supporting an open architecture compatible with 96kHz sampling rates. With 22 multi-functional XLR inputs powered by ultra-linear BC846 preamplifiers, it captures pristine, transparent vocals and instrument tones with exceptional clarity. Equipped with a three-in-one digital media module, the TF5 features built-in Bluetooth connectivity, an integrated computer sound card interface, and direct USB recording/playback. For comprehensive signal routing, it boasts 4-channel true balanced grouped outputs, 4 independent auxiliary (AUX) outputs with dedicated FX routing, a dual 7-band master graphic equalizer, and distinctive dual-color backlit mute switches for flawless visual navigation on a dark stage. Key Features: Hybrid Semi-Digital Architecture: Combines premium analog mixing control with high-resolution 192kHz/24-bit digital converters and 40-bit floating-point DSP processing. Premium BC846 Preamplifiers: 22 high-headroom, ultra-linear XLR inputs with breakpoint insert functions provide ultra-low distortion and clean gain up to \ge50dB. Dual-Color Backlit Mute System: Each channel features an independent dual-color mute switch—blue light indicates the channel is active, while a red light indicates it is muted. Advanced Effects & Media Center: Features a built-in 99-program DSP effects engine with customizable delays, integrated Bluetooth, and a USB sound card for direct DAW recording. Comprehensive Bus Routing: Equipped with true balanced main L/R outputs, 4-channel true balanced subgroup outputs, 4 independent AUX sends, and a dedicated return channel. Professional Monitoring & Control: Features smooth 60mm long-travel faders, independent +48V phantom power on each channel, and dedicated LED single-channel monitoring. Technical Specifications: Total Channels: 26 Channels (22 x Mic/Line XLR Combo, 2 x Stereo Pairs via 6.35mm/RCA) DSP Processing: 40-bit floating-point, compatible with 96kHz sampling rates Frequency Response: 20 Hz – 20 kHz (\pm0.5 dB) Signal-to-Noise Ratio: \ge100 dB (A-weighted) Total Harmonic Distortion (THD): <0.003% (A-weighted) Channel Equalization: High: 12 kHz / \pm15 dB Mid: 2.5 kHz / \pm15 dB Low: 80 Hz / \pm15 dB Master Equalization: Dual 7-Band Graphic EQ Output Impedance: Main Outputs \le300 \Omega; Aux/Card Outputs \le10 k$\Omega$ Total Power Consumption: \le40W (Internal power switch, 240V input) |
