Description

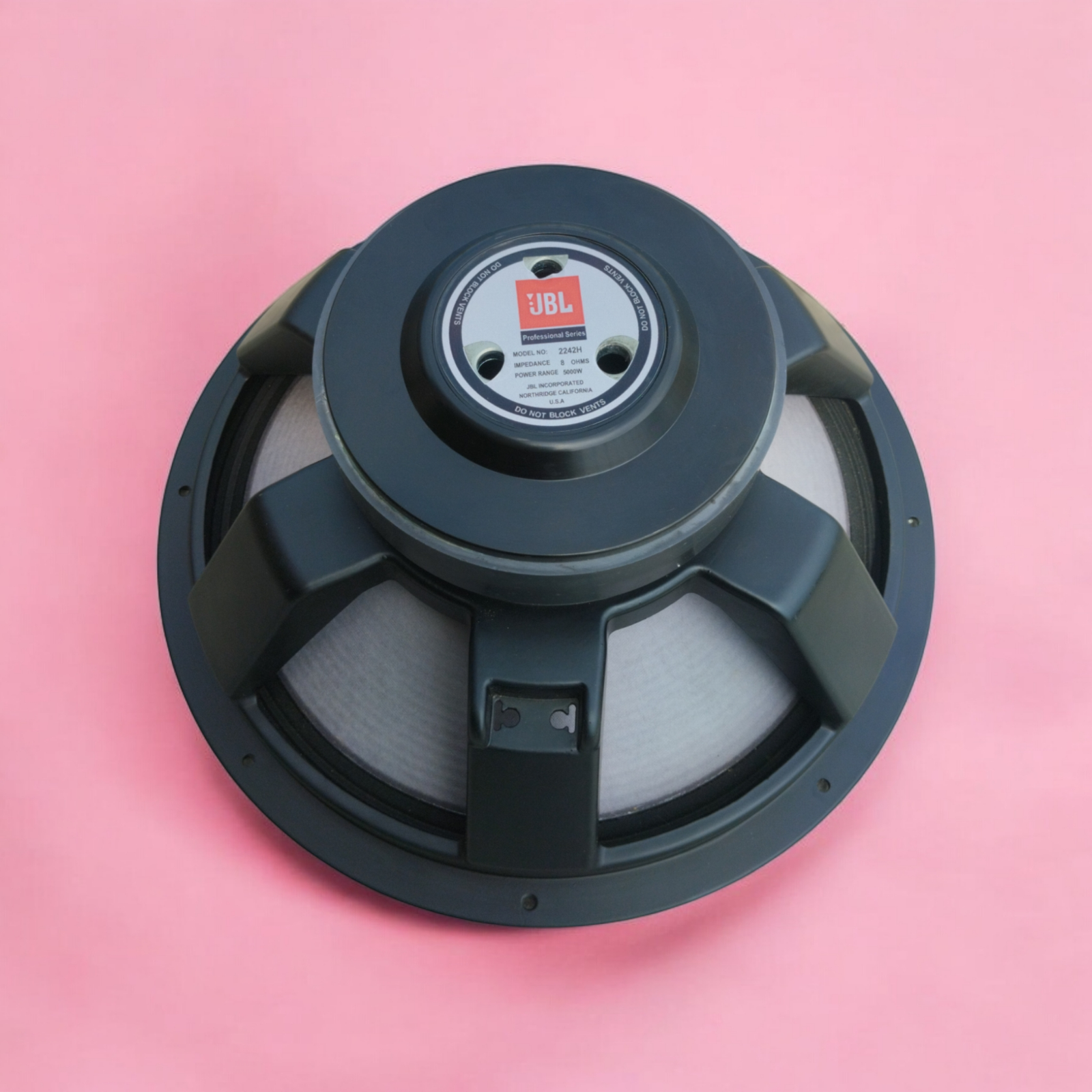

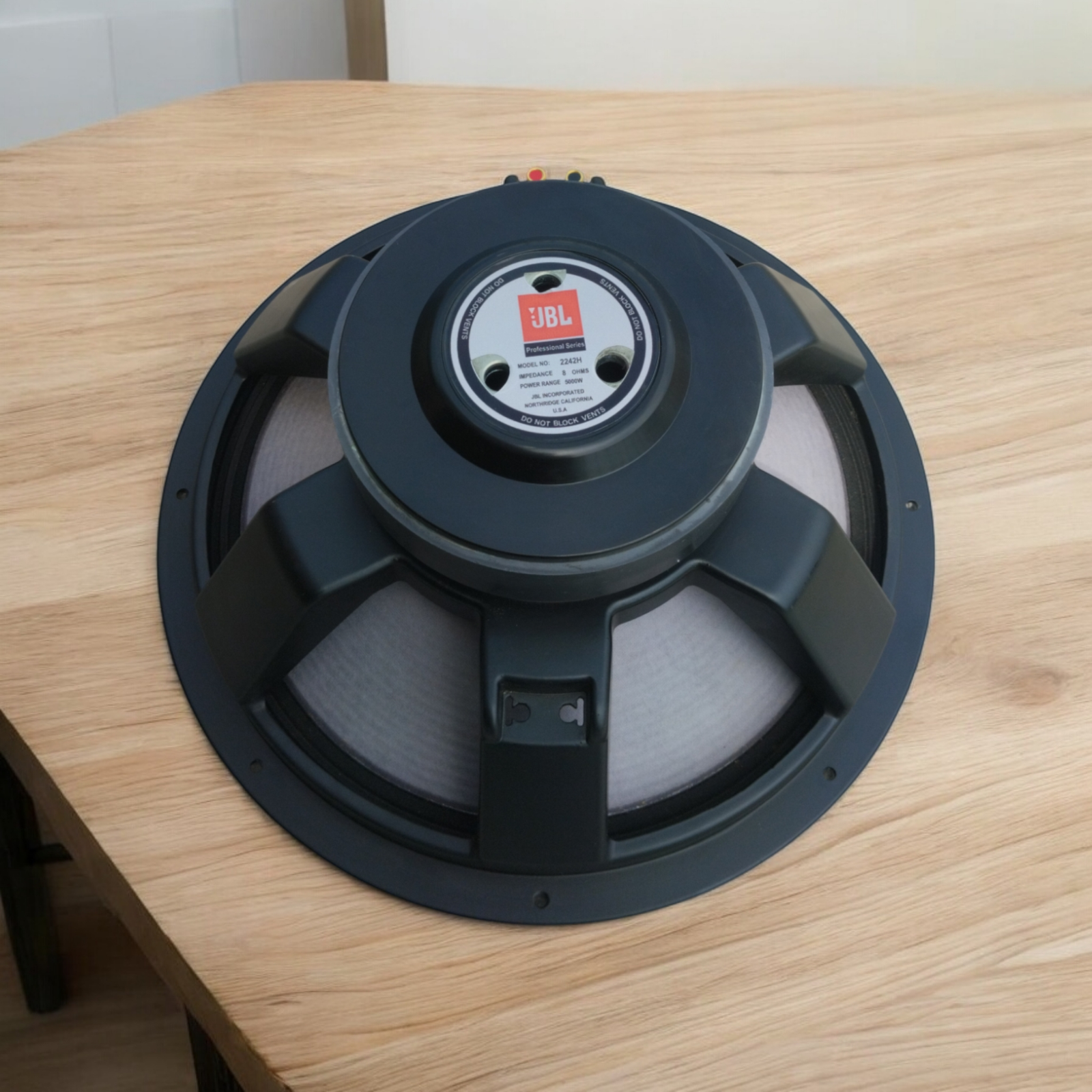

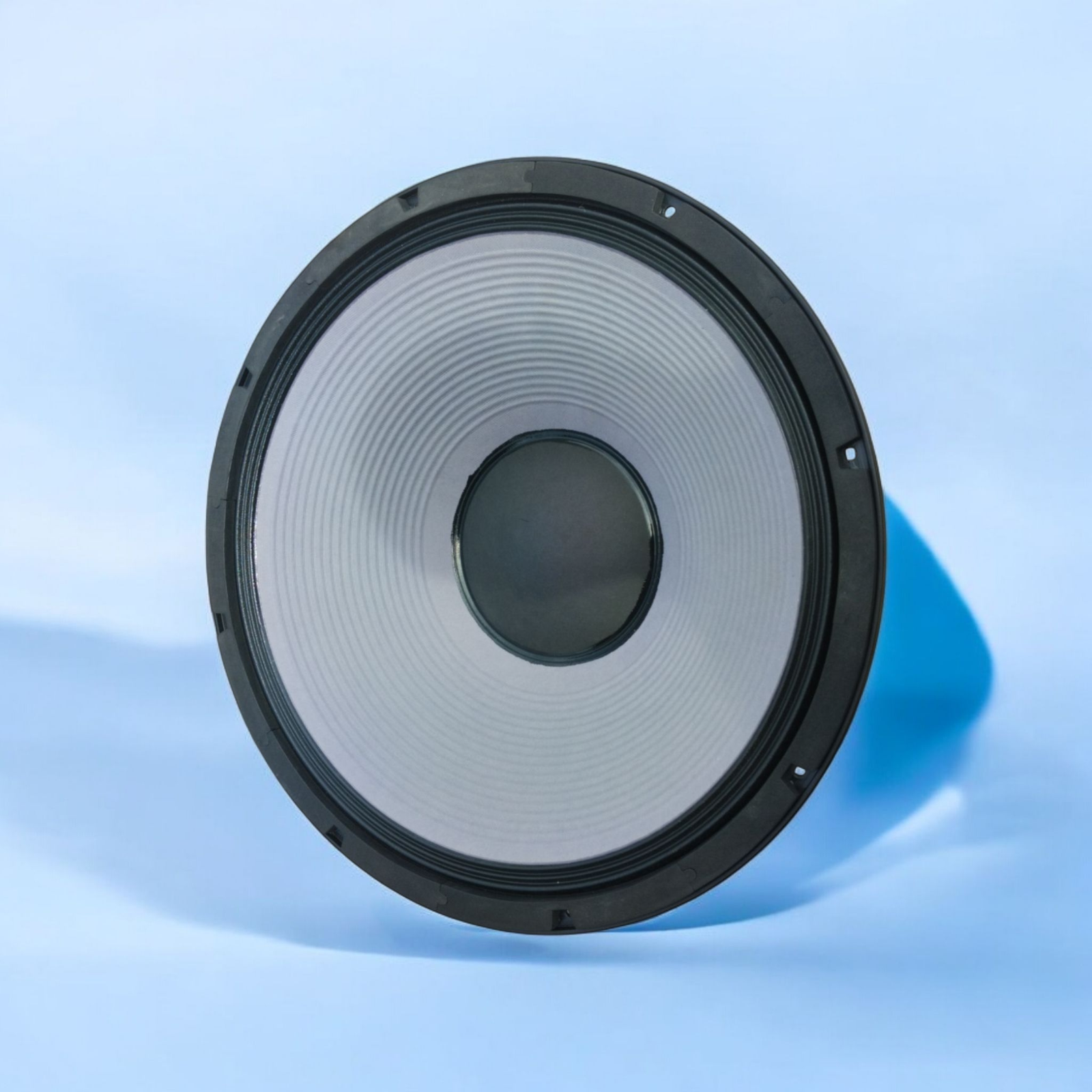

The JBL 2242H is a professional 18-inch low-frequency transducer designed for high-output subwoofer and professional sound reinforcement applications. It features JBL’s Super Vented Gap (SVG) cooling technology, a large motor structure and a 100mm (4-inch) edge-wound aluminum ribbon voice coil for high power handling and reduced power compression.

The 2242H is rated at 800W power handling and delivers approximately 99dB sensitivity, making it an excellent choice for powerful low-frequency applications. JBL has used this driver in professional subwoofer systems including the SRX and AE series.

Power & Performance

• Power Handling: 800W
• Nominal Impedance: 8 Ohms
• Sensitivity: 99dB
• Frequency Range: 25Hz – 1.6kHz
• Recommended Maximum Crossover: 1kHz
• Voice Coil: 100mm / 4 inches

Key Features

• 18-inch JBL professional woofer
• 100mm (4-inch) voice coil
• Edge-wound aluminum ribbon voice coil
• Super Vented Gap (SVG) cooling technology
• 800W power handling
• 99dB sensitivity
• 8-ohm nominal impedance
• 25Hz – 1.6kHz frequency range
• Fiberglass-reinforced cone
• SFG Symmetrical Field Geometry magnet structure
• Long-excursion design
• Low power compression
• High maximum SPL capability
• Designed for professional subwoofer applications

Technical Specifications

• Nominal Diameter: 460mm / 18 inches
• Rated Impedance: 8 Ohms
• Minimum Impedance: 6.6 Ohms
• Power Capacity: 800W
• Effective Piston Diameter: 397mm
• Maximum Excursion Before Damage: 50mm peak-to-peak
• Voice Coil Diameter: 100mm / 4 inches
• Voice Coil Material: Edge-wound aluminum ribbon
• Voice Coil Winding Depth: 25mm
• Recommended Enclosure Volume: 140 – 340 litres

Ideal Applications

The JBL 2242H is ideal for professional subwoofers, replacement speaker projects, DJ sound systems, churches, live bands, event centres, clubs, theatres and high-output PA systems. It is particularly suited to applications where powerful and controlled low-frequency reproduction is required.

Upgrade your subwoofer system with the JBL 2242H 18-inch professional woofer and enjoy high power handling, strong bass output, excellent sensitivity and JBL’s proven Super Vented Gap cooling technology.
